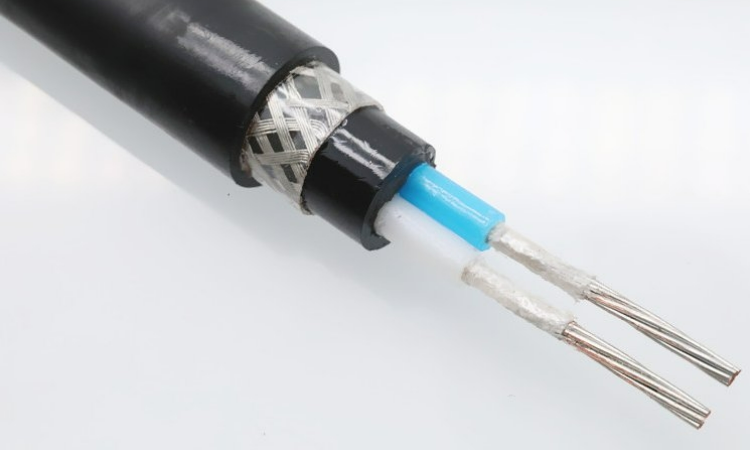

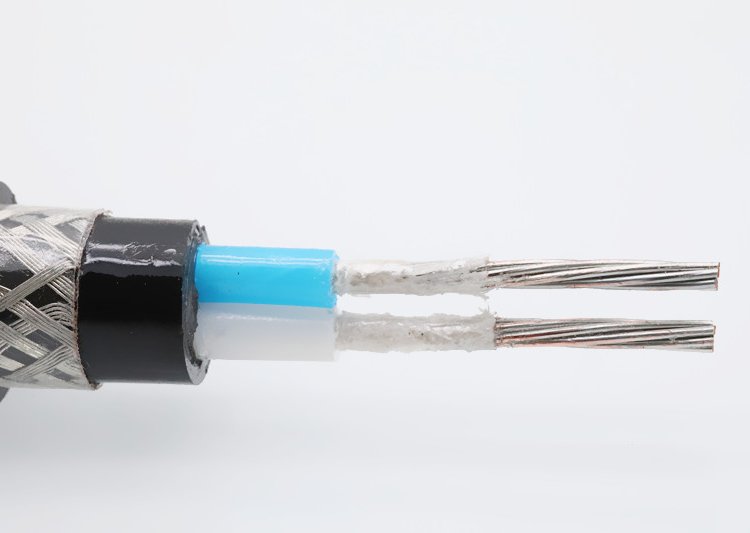

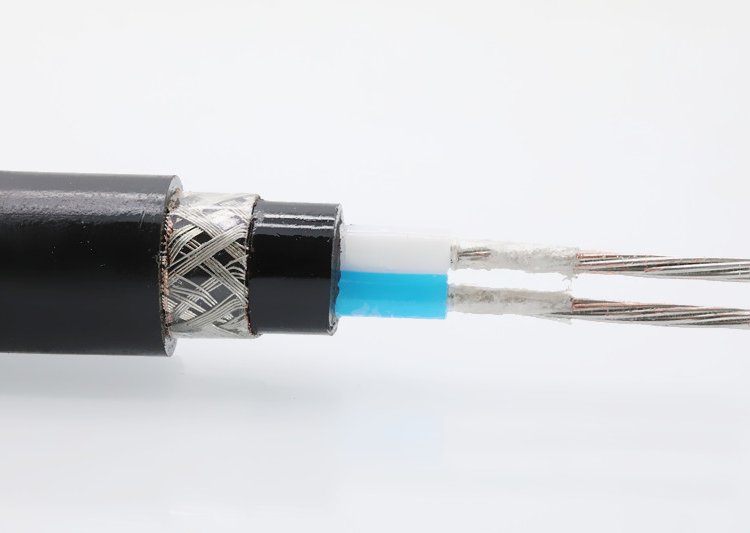

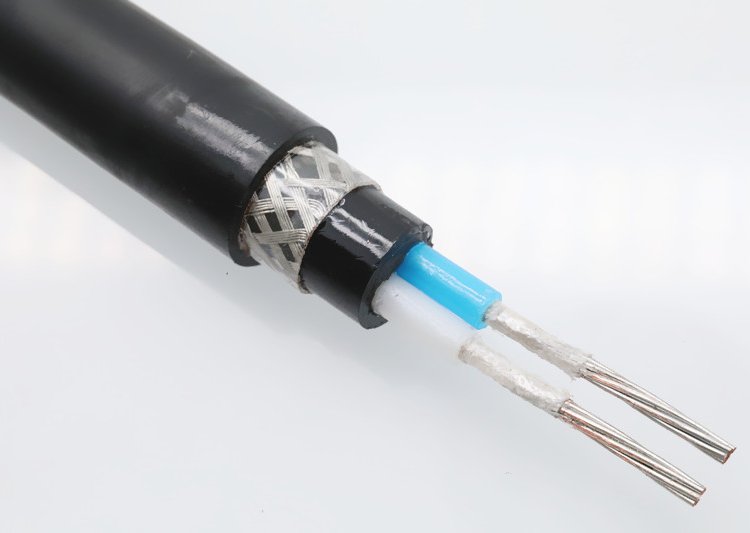

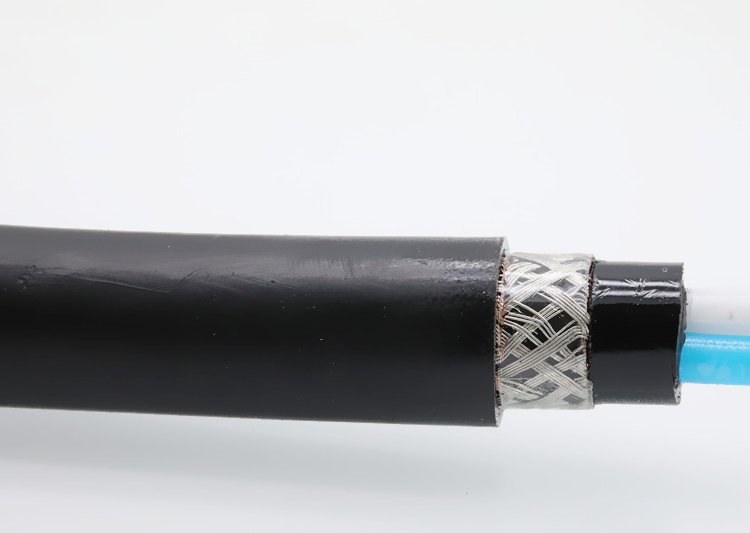

船用耐火铠装电缆CJPJ95/NSC 2*2.5
CJPJ95/NC船用电缆应用范围：
船用电缆，冶金、化工、电力等工矿企业亦同样适用乙丙绝缘、交联聚乙烯绝缘、聚氯乙烯绝缘、天然—丁苯绝缘生产船用电力电缆。主要适用于各种河海船舶及海上石油平台等各种水上建筑物的动力、照明和一般控制装置之用。
CJPJ95/NC船用电缆执行标准
IEC 60092-353 – 设计
IEC 60228 Class 2 – 导体
IEC 60092-351 – 绝缘
IEC 60092-359 – 护套
IEC 60332 3 22 阻燃
产品结构:
导体：镀锡导体+耐火层
绝缘：XLPE交联聚烯烃
绝缘颜色：红、黄、绿、黑、棕、蓝、黄/绿 多芯的采用黑色编码
内护套：交联聚烯烃
内护套颜色：黑
铠装：镀锡钢丝编织
屏蔽密度：85%
护套：交联聚烯烃低烟无卤护套
护套颜色：黑
使用特性：
1、额定电压U0/U为0.6/1kV及以下电力系统。电缆导体长期允许Z高工作温度为
交联聚乙烯绝缘船用电力电缆为90℃
2、短路时（Z长持续时间不超过5S）电缆导体的Z高温度不超过:
交联聚乙烯绝缘船用电力电缆为250℃
3、弯曲半径：交联聚乙烯绝缘与聚氯乙烯绝缘电缆的敷设温度应不低于0℃,其Z小弯曲半径单芯电缆为20D，多芯电缆为15D（D为电缆外径）。
产品选型：
CJPJ95/SC-0.6/1KV-3*1.5 | CJPJ95/NC-0.6/1KV-3*1.5 | CJPJ92/SC-0.6/1KV-3*1.5 |
CJPJ95/SC-0.6/1KV-3*2.5 | CJPJ95/NC-0.6/1KV-3*2.5 | CJPJ92/SC-0.6/1KV-3*2.5 |
CJPJ95/SC-0.6/1KV-3*4 | CJPJ95/NC-0.6/1KV-3*4 | CJPJ92/SC-0.6/1KV-3*4 |
CJPJ95/SC-0.6/1KV-3*6 | CJPJ95/NC-0.6/1KV-3*6 | CJPJ92/SC-0.6/1KV-3*6 |
CJPJ95/SC-0.6/1KV-3*10 | CJPJ95/NC-0.6/1KV-3*10 | CJPJ92/SC-0.6/1KV-3*10 |
CJPJ95/SC-0.6/1KV-3*16 | CJPJ95/NC-0.6/1KV-3*16 | CJPJ92/SC-0.6/1KV-3*16 |
CJPJ95/SC-0.6/1KV-3*25 | CJPJ95/NC-0.6/1KV-3*25 | CJPJ92/SC-0.6/1KV-3*25 |
CJPJ95/SC-0.6/1KV-3*35 | CJPJ95/NC-0.6/1KV-3*35 | CJPJ92/SC-0.6/1KV-3*35 |
CJPJ95/SC-0.6/1KV-3*50 | CJPJ95/NC-0.6/1KV-3*50 | CJPJ92/SC-0.6/1KV-3*50 |
CJPJ95/SC-0.6/1KV-3*70 | CJPJ95/NC-0.6/1KV-3*70 | CJPJ92/SC-0.6/1KV-3*70 |
CJPJ95/SC-0.6/1KV-3*95 | CJPJ95/NC-0.6/1KV-3*95 | CJPJ92/SC-0.6/1KV-3*95 |
CJPJ95/SC-0.6/1KV-3*120 | CJPJ95/NC-0.6/1KV-3*120 | CJPJ92/SC-0.6/1KV-3*120 |
CJPJ95/SC-0.6/1KV-3*150 | CJPJ95/NC-0.6/1KV-3*150 | CJPJ92/SC-0.6/1KV-3*150 |
CJPJ95/SC-0.6/1KV-3*185 | CJPJ95/NC-0.6/1KV-3*185 | CJPJ92/SC-0.6/1KV-3*185 |
CJPJ95/SC-0.6/1KV-4*1.5 | CJPJ95/NC-0.6/1KV-4*1.5 | CJPJ92/SC-0.6/1KV-4*1.5 |
CJPJ95/SC-0.6/1KV-4*2.5 | CJPJ95/NC-0.6/1KV-4*2.5 | CJPJ92/SC-0.6/1KV-4*2.5 |
CJPJ95/SC-0.6/1KV-4*4 | CJPJ95/NC-0.6/1KV-4*4 | CJPJ92/SC-0.6/1KV-4*4 |
CJPJ95/SC-0.6/1KV-4*6 | CJPJ95/NC-0.6/1KV-4*6 | CJPJ92/SC-0.6/1KV-4*6 |
CJPJ95/SC-0.6/1KV-4*10 | CJPJ95/NC-0.6/1KV-4*10 | CJPJ92/SC-0.6/1KV-4*10 |
CJPJ95/SC-0.6/1KV-4*16 | CJPJ95/NC-0.6/1KV-4*16 | CJPJ92/SC-0.6/1KV-4*16 |
CJPJ95/SC-0.6/1KV-4*25 | CJPJ95/NC-0.6/1KV-4*25 | CJPJ92/SC-0.6/1KV-4*25 |
CJPJ95/SC-0.6/1KV-4*35 | CJPJ95/NC-0.6/1KV-4*35 | CJPJ92/SC-0.6/1KV-4*35 |
CJPJ95/SC-0.6/1KV-4*50 | CJPJ95/NC-0.6/1KV-4*50 | CJPJ92/SC-0.6/1KV-4*50 |
CJPJ95/SC-0.6/1KV-4*70 | CJPJ95/NC-0.6/1KV-4*70 | CJPJ92/SC-0.6/1KV-4*70 |
CJPJ95/SC-0.6/1KV-4*95 | CJPJ95/NC-0.6/1KV-4*95 | CJPJ92/SC-0.6/1KV-4*95 |
CJPJ95/SC-0.6/1KV-4*120 | CJPJ95/NC-0.6/1KV-4*120 | CJPJ92/SC-0.6/1KV-4*120 |
CJPJ95/SC-0.6/1KV-4*150 | CJPJ95/NC-0.6/1KV-4*150 | CJPJ92/SC-0.6/1KV-4*150 |
CJPJ95/SC-0.6/1KV-3*4+1*2.5 | CJPJ95/NC-0.6/1KV-3*4+1*2.5 | CJPJ92/SC-0.6/1KV-3*4+1*2.5 |
CJPJ95/SC-0.6/1KV-3*6+1*4 | CJPJ95/NC-0.6/1KV-3*6+1*4 | CJPJ92/SC-0.6/1KV-3*6+1*4 |
CJPJ95/SC-0.6/1KV-3*10+1*6 | CJPJ95/NC-0.6/1KV-3*10+1*6 | CJPJ92/SC-0.6/1KV-3*10+1*6 |
CJPJ95/SC-0.6/1KV-3*16+1*10 | CJPJ95/NC-0.6/1KV-3*16+1*10 | CJPJ92/SC-0.6/1KV-3*16+1*10 |
CJPJ95/SC-0.6/1KV-3*25+1*16 | CJPJ95/NC-0.6/1KV-3*25+1*16 | CJPJ92/SC-0.6/1KV-3*25+1*16 |
CJPJ95/SC-0.6/1KV-3*35+1*16 | CJPJ95/NC-0.6/1KV-3*35+1*16 | CJPJ92/SC-0.6/1KV-3*35+1*16 |
CJPJ95/SC-0.6/1KV-3*50+1*25 | CJPJ95/NC-0.6/1KV-3*50+1*25 | CJPJ92/SC-0.6/1KV-3*50+1*25 |
CJPJ95/SC-0.6/1KV-3*70+1*35 | CJPJ95/NC-0.6/1KV-3*70+1*35 | CJPJ92/SC-0.6/1KV-3*70+1*35 |
CJPJ95/SC-0.6/1KV-3*95+1*50 | CJPJ95/NC-0.6/1KV-3*95+1*50 | CJPJ92/SC-0.6/1KV-3*95+1*50 |
CJPJ95/SC-0.6/1KV-3*120+1*70 | CJPJ95/NC-0.6/1KV-3*120+1*70 | CJPJ92/SC-0.6/1KV-3*120+1*70 |
CJPJ95/SC-0.6/1KV-3*150+1*70 | CJPJ95/NC-0.6/1KV-3*150+1*70 | CJPJ92/SC-0.6/1KV-3*150+1*70 |
CJPJ95/SC-0.6/1KV-3*185+1*95 | CJPJ95/NC-0.6/1KV-3*185+1*95 | CJPJ92/SC-0.6/1KV-3*185+1*95 |
CJPJ95/SC-0.6/1KV-3*10+2*6 | CJPJ95/NC-0.6/1KV-3*10+2*6 | CJPJ92/SC-0.6/1KV-3*10+2*6 |
CJPJ95/SC-0.6/1KV-3*16+2*10 | CJPJ95/NC-0.6/1KV-3*16+2*10 | CJPJ92/SC-0.6/1KV-3*16+2*10 |
CJPJ95/SC-0.6/1KV-3*25+2*16 | CJPJ95/NC-0.6/1KV-3*25+2*16 | CJPJ92/SC-0.6/1KV-3*25+2*16 |
CJPJ95/SC-0.6/1KV-3*35+2*16 | CJPJ95/NC-0.6/1KV-3*35+2*16 | CJPJ92/SC-0.6/1KV-3*35+2*16 |
CJPJ95/SC-0.6/1KV-3*50+2*25 | CJPJ95/NC-0.6/1KV-3*50+2*25 | CJPJ92/SC-0.6/1KV-3*50+2*25 |
CJPJ95/SC-0.6/1KV-3*70+2*35 | CJPJ95/NC-0.6/1KV-3*70+2*35 | CJPJ92/SC-0.6/1KV-3*70+2*35 |
CJPJ95/SC-0.6/1KV-3*95+2*50 | CJPJ95/NC-0.6/1KV-3*95+2*50 | CJPJ92/SC-0.6/1KV-3*95+2*50 |
CJPJ95/SC-0.6/1KV-3*120+2*70 | CJPJ95/NC-0.6/1KV-3*120+2*70 | CJPJ92/SC-0.6/1KV-3*120+2*70 |
CJPJ95/SC-0.6/1KV-3*150+2*70 | CJPJ95/NC-0.6/1KV-3*150+2*70 | CJPJ92/SC-0.6/1KV-3*150+2*70 |
CJPJ95/SC-0.6/1KV-3*185+2*95 | CJPJ95/NC-0.6/1KV-3*185+2*95 | CJPJ92/SC-0.6/1KV-3*185+2*95 |
CJPJ95/SC-0.6/1KV-3*240+2*120 | CJPJ95/NC-0.6/1KV-3*240+2*120 | CJPJ92/SC-0.6/1KV-3*240+2*120 |
CJPJ95/SC-0.6/1KV-4*10+1*6 | CJPJ95/NC-0.6/1KV-4*10+1*6 | CJPJ92/SC-0.6/1KV-4*10+1*6 |
CJPJ95/SC-0.6/1KV-4*16+1*10 | CJPJ95/NC-0.6/1KV-4*16+1*10 | CJPJ92/SC-0.6/1KV-4*16+1*10 |
CJPJ95/SC-0.6/1KV-4*25+1*16 | CJPJ95/NC-0.6/1KV-4*25+1*16 | CJPJ92/SC-0.6/1KV-4*25+1*16 |
CJPJ95/SC-0.6/1KV-4*35+1*16 | CJPJ95/NC-0.6/1KV-4*35+1*16 | CJPJ92/SC-0.6/1KV-4*35+1*16 |
CJPJ95/SC-0.6/1KV-4*50+1*25 | CJPJ95/NC-0.6/1KV-4*50+1*25 | CJPJ92/SC-0.6/1KV-4*50+1*25 |
CJPJ95/SC-0.6/1KV-4*70+1*35 | CJPJ95/NC-0.6/1KV-4*70+1*35 | CJPJ92/SC-0.6/1KV-4*70+1*35 |
CJPJ95/SC-0.6/1KV-4*95+1*50 | CJPJ95/NC-0.6/1KV-4*95+1*50 | CJPJ92/SC-0.6/1KV-4*95+1*50 |
CJPJ95/SC-0.6/1KV-4*120+1*70 | CJPJ95/NC-0.6/1KV-4*120+1*70 | CJPJ92/SC-0.6/1KV-4*120+1*70 |
CJPJ95/SC-0.6/1KV-5*1.0 | CJPJ95/NC-0.6/1KV-5*1.0 | CJPJ92/SC-0.6/1KV-5*1.0 |
CJPJ95/SC-0.6/1KV-7*1.0 | CJPJ95/NC-0.6/1KV-7*1.0 | CJPJ92/SC-0.6/1KV-7*1.0 |
CJPJ95/SC-0.6/1KV-10*1.0 | CJPJ95/NC-0.6/1KV-10*1.0 | CJPJ92/SC-0.6/1KV-10*1.0 |
CJPJ95/SC-0.6/1KV-12*1.0 | CJPJ95/NC-0.6/1KV-12*1.0 | CJPJ92/SC-0.6/1KV-12*1.0 |
CJPJ95/SC-0.6/1KV-14*1.0 | CJPJ95/NC-0.6/1KV-14*1.0 | CJPJ92/SC-0.6/1KV-14*1.0 |
CJPJ95/SC-0.6/1KV-19*1.0 | CJPJ95/NC-0.6/1KV-19*1.0 | CJPJ92/SC-0.6/1KV-19*1.0 |
CJPJ95/SC-0.6/1KV-24*1.0 | CJPJ95/NC-0.6/1KV-24*1.0 | CJPJ92/SC-0.6/1KV-24*1.0 |
CJPJ95/SC-0.6/1KV-27*1.0 | CJPJ95/NC-0.6/1KV-27*1.0 | CJPJ92/SC-0.6/1KV-27*1.0 |
CJPJ95/SC-0.6/1KV-30*1.0 | CJPJ95/NC-0.6/1KV-30*1.0 | CJPJ92/SC-0.6/1KV-30*1.0 |
CJPJ95/SC-0.6/1KV-33*1.0 | CJPJ95/NC-0.6/1KV-33*1.0 | CJPJ92/SC-0.6/1KV-33*1.0 |
CJPJ95/SC-0.6/1KV-37*1.0 | CJPJ95/NC-0.6/1KV-37*1.0 | CJPJ92/SC-0.6/1KV-37*1.0 |
CJPJ95/SC-0.6/1KV-5*1.5 | CJPJ95/NC-0.6/1KV-5*1.5 | CJPJ92/SC-0.6/1KV-5*1.5 |
CJPJ95/SC-0.6/1KV-7*1.5 | CJPJ95/NC-0.6/1KV-7*1.5 | CJPJ92/SC-0.6/1KV-7*1.5 |
CJPJ95/SC-0.6/1KV-10*1.5 | CJPJ95/NC-0.6/1KV-10*1.5 | CJPJ92/SC-0.6/1KV-10*1.5 |
CJPJ95/SC-0.6/1KV-12*1.5 | CJPJ95/NC-0.6/1KV-12*1.5 | CJPJ92/SC-0.6/1KV-12*1.5 |
CJPJ95/SC-0.6/1KV-14*1.5 | CJPJ95/NC-0.6/1KV-14*1.5 | CJPJ92/SC-0.6/1KV-14*1.5 |
CJPJ95/SC-0.6/1KV-19*1.5 | CJPJ95/NC-0.6/1KV-19*1.5 | CJPJ92/SC-0.6/1KV-19*1.5 |
CJPJ95/SC-0.6/1KV-24*1.5 | CJPJ95/NC-0.6/1KV-24*1.5 | CJPJ92/SC-0.6/1KV-24*1.5 |
CJPJ95/SC-0.6/1KV-27*1.5 | CJPJ95/NC-0.6/1KV-27*1.5 | CJPJ92/SC-0.6/1KV-27*1.5 |
CJPJ95/SC-0.6/1KV-30*1.5 | CJPJ95/NC-0.6/1KV-30*1.5 | CJPJ92/SC-0.6/1KV-30*1.5 |
CJPJ95/SC-0.6/1KV-33*1.5 | CJPJ95/NC-0.6/1KV-33*1.5 | CJPJ92/SC-0.6/1KV-33*1.5 |
CJPJ95/SC-0.6/1KV-37*1.5 | CJPJ95/NC-0.6/1KV-37*1.5 | CJPJ92/SC-0.6/1KV-37*1.5 |
CJPJ95/SC-0.6/1KV-5*2.5 | CJPJ95/NC-0.6/1KV-5*2.5 | CJPJ92/SC-0.6/1KV-5*2.5 |
CJPJ95/SC-0.6/1KV-7*2.5 | CJPJ95/NC-0.6/1KV-7*2.5 | CJPJ92/SC-0.6/1KV-7*2.5 |
CJPJ95/SC-0.6/1KV-10*2.5 | CJPJ95/NC-0.6/1KV-10*2.5 | CJPJ92/SC-0.6/1KV-10*2.5 |
CJPJ95/SC-0.6/1KV-12*2.5 | CJPJ95/NC-0.6/1KV-12*2.5 | CJPJ92/SC-0.6/1KV-12*2.5 |
CJPJ95/SC-0.6/1KV-14*2.5 | CJPJ95/NC-0.6/1KV-14*2.5 | CJPJ92/SC-0.6/1KV-14*2.5 |
CJPJ95/SC-0.6/1KV-19*2.5 | CJPJ95/NC-0.6/1KV-19*2.5 | CJPJ92/SC-0.6/1KV-19*2.5 |
CJPJ95/SC-0.6/1KV-24*2.5 | CJPJ95/NC-0.6/1KV-24*2.5 | CJPJ92/SC-0.6/1KV-24*2.5 |
CJPJ95/SC-0.6/1KV-27*2.5 | CJPJ95/NC-0.6/1KV-27*2.5 | CJPJ92/SC-0.6/1KV-27*2.5 |
CJPJ95/SC-0.6/1KV-30*2.5 | CJPJ95/NC-0.6/1KV-30*2.5 | CJPJ92/SC-0.6/1KV-30*2.5 |
CJPJ95/SC-0.6/1KV-33*2.5 | CJPJ95/NC-0.6/1KV-33*2.5 | CJPJ92/SC-0.6/1KV-33*2.5 |
CJPJ95/SC-0.6/1KV-37*2.5 | CJPJ95/NC-0.6/1KV-37*2.5 | CJPJ92/SC-0.6/1KV-37*2.5 |
CJPJ95/SC-0.6/1KV-1*1.5 | CJPJ95/NC-0.6/1KV-1*1.5 | CJPJ92/SC-0.6/1KV-1*1.5 |
CJPJ95/SC-0.6/1KV-1*2.5 | CJPJ95/NC-0.6/1KV-1*2.5 | CJPJ92/SC-0.6/1KV-1*2.5 |
CJPJ95/SC-0.6/1KV-1*4 | CJPJ95/NC-0.6/1KV-1*4 | CJPJ92/SC-0.6/1KV-1*4 |
CJPJ95/SC-0.6/1KV-1*6 | CJPJ95/NC-0.6/1KV-1*6 | CJPJ92/SC-0.6/1KV-1*6 |
CJPJ95/SC-0.6/1KV-1*10 | CJPJ95/NC-0.6/1KV-1*10 | CJPJ92/SC-0.6/1KV-1*10 |
CJPJ95/SC-0.6/1KV-1*16 | CJPJ95/NC-0.6/1KV-1*16 | CJPJ92/SC-0.6/1KV-1*16 |
CJPJ95/SC-0.6/1KV-1*25 | CJPJ95/NC-0.6/1KV-1*25 | CJPJ92/SC-0.6/1KV-1*25 |
CJPJ95/SC-0.6/1KV-1*35 | CJPJ95/NC-0.6/1KV-1*35 | CJPJ92/SC-0.6/1KV-1*35 |
CJPJ95/SC-0.6/1KV-1*50 | CJPJ95/NC-0.6/1KV-1*50 | CJPJ92/SC-0.6/1KV-1*50 |
CJPJ95/SC-0.6/1KV-1*70 | CJPJ95/NC-0.6/1KV-1*70 | CJPJ92/SC-0.6/1KV-1*70 |
CJPJ95/SC-0.6/1KV-1*95 | CJPJ95/NC-0.6/1KV-1*95 | CJPJ92/SC-0.6/1KV-1*95 |
CJPJ95/SC-0.6/1KV-1*120 | CJPJ95/NC-0.6/1KV-1*120 | CJPJ92/SC-0.6/1KV-1*120 |
CJPJ95/SC-0.6/1KV-1*150 | CJPJ95/NC-0.6/1KV-1*150 | CJPJ92/SC-0.6/1KV-1*150 |
CJPJ95/SC-0.6/1KV-1*185 | CJPJ95/NC-0.6/1KV-1*185 | CJPJ92/SC-0.6/1KV-1*185 |
CJPJ95/SC-0.6/1KV-1*240 | CJPJ95/NC-0.6/1KV-1*240 | CJPJ92/SC-0.6/1KV-1*240 |
CJPJ95/SC-0.6/1KV-1*300 | CJPJ95/NC-0.6/1KV-1*300 | CJPJ92/SC-0.6/1KV-1*300 |
CJPJ95/SC-0.6/1KV-1*400 | CJPJ95/NC-0.6/1KV-1*400 | CJPJ92/SC-0.6/1KV-1*400 |
CJPJ95/SC-0.6/1KV-1*500 | CJPJ95/NC-0.6/1KV-1*500 | CJPJ92/SC-0.6/1KV-1*500 |
CJPJ95/SC-0.6/1KV-2*1.5 | CJPJ95/NC-0.6/1KV-2*1.5 | CJPJ92/SC-0.6/1KV-2*1.5 |
CJPJ95/SC-0.6/1KV-2*2.5 | CJPJ95/NC-0.6/1KV-2*2.5 | CJPJ92/SC-0.6/1KV-2*2.5 |
CJPJ95/SC-0.6/1KV-2*4 | CJPJ95/NC-0.6/1KV-2*4 | CJPJ92/SC-0.6/1KV-2*4 |
CJPJ95/SC-0.6/1KV-2*6 | CJPJ95/NC-0.6/1KV-2*6 | CJPJ92/SC-0.6/1KV-2*6 |
CJPJ95/SC-0.6/1KV-2*10 | CJPJ95/NC-0.6/1KV-2*10 | CJPJ92/SC-0.6/1KV-2*10 |
CJPJ95/SC-0.6/1KV-2*16 | CJPJ95/NC-0.6/1KV-2*16 | CJPJ92/SC-0.6/1KV-2*16 |
CJPJ95/SC-0.6/1KV-2*25 | CJPJ95/NC-0.6/1KV-2*25 | CJPJ92/SC-0.6/1KV-2*25 |
CJPJ95/SC-0.6/1KV-2*35 | CJPJ95/NC-0.6/1KV-2*35 | CJPJ92/SC-0.6/1KV-2*35 |
CJPJ95/SC-0.6/1KV-2*50 | CJPJ95/NC-0.6/1KV-2*50 | CJPJ92/SC-0.6/1KV-2*50 |
CJPJ95/SC-0.6/1KV-2*70 | CJPJ95/NC-0.6/1KV-2*70 | CJPJ92/SC-0.6/1KV-2*70 |
CJPJ95/SC-0.6/1KV-2*95 | CJPJ95/NC-0.6/1KV-2*95 | CJPJ92/SC-0.6/1KV-2*95 |
CJPJ95/SC-0.6/1KV-2*120 | CJPJ95/NC-0.6/1KV-2*120 | CJPJ92/SC-0.6/1KV-2*120 |
CJPFP/SC
交联聚乙烯绝缘镀锡铜丝编织独立屏蔽聚烯径护套船用电力电缆，SC型
XLPE insulation tinned copper wire braided individual screen PO sheath shipboard
power cable, Type SC
IEC60092-350
IEC60092-353
IEC60332-3A
CJPFP80/SC
交联聚乙烯绝缘镀锡铜丝编织独立屏蔽聚烯径内套镀锡铜丝编织铠装船用电力
电缆，SC型
XLPE insulation tinned copper wire braided individual screen PO sheath tinned
copper wire braided shipboard power cable, Type SC
CJPFP90/SC
交联聚乙烯绝缘镀锡铜丝编织独立屏蔽聚烯径内套镀锌钢丝编织铠装船用电力
电缆，SC型
XLPE insulation tinned copper wire braided individual screen PO sheath galvanized
